With Hole

Bung with vertical hole.

By adding one or more holes, there’s enough room for inserting tubes, sensors, connecting devices, glass apparatus, etc. …

Close

Turn screen for a complete visualization of the table.

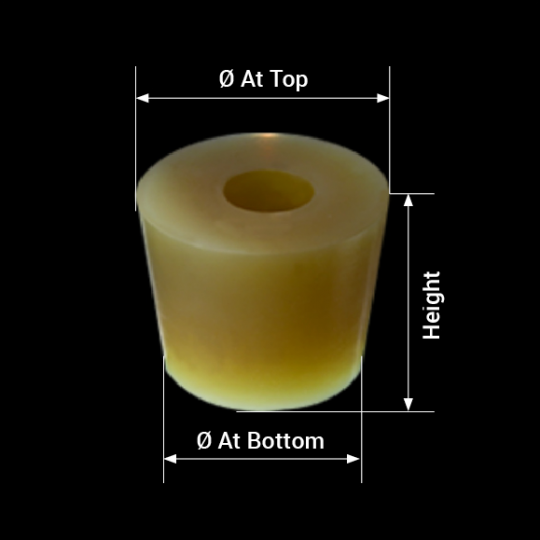

Ø Barrel hole Model Referencia Ø at Bottom Ø at Top Height Ø Flange
45-50 Universal U-M 39 mm 55 mm 62 mm
45 Conical C-15 42 mm 49 mm 45 mm
45 Zeta Z-45L 42 mm 50 mm 32 mm 60 mm
45 Conical C-42x55xH50 42 mm 55 mm 50 mm
50 Zeta Z-50 45 mm 54 mm 37 mm 69 mm
48 Conical C-19 45 mm 54 mm 54 mm
50 Conical C-16 45 mm 55 mm 48 mm
50 Conical C-47x56xH50 47 mm 56 mm 50 mm
55 Zeta Z-55 49 mm 56 mm 38 mm 69 mm

Download
datasheet

Available colors:
White or Brown.
Other colors, request us more info.

Other Measures and Models, request us more info.
