Zeta Model

Bung that comes with flange on the top.

Bung equipped with a hat on top to ease its handling, extraction, and insertion.

Close

Turn screen for a complete visualization of the table.

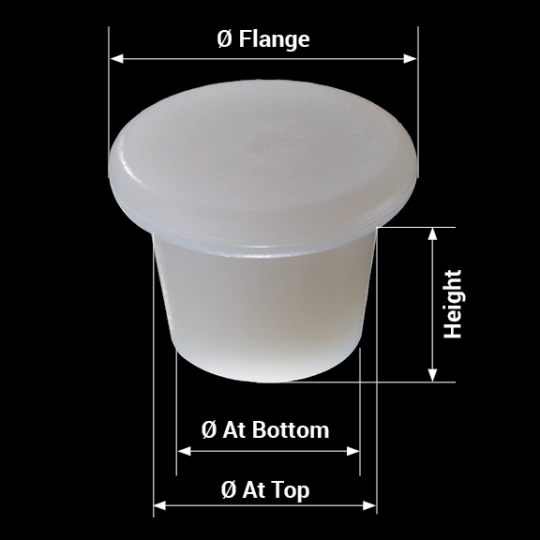

Ø Barrel hole Reference Ø at Bottom Ø at Top Height Ø Flange
42 Z-42 USA 30 mm 46 mm 40 mm 56 mm
42 Z-42 UE 40 mm 46 mm 40 mm 56 mm
45 Z-45L 42 mm 50 mm 32 mm 60 mm
  Z-SAL 44 mm 51 mm 38 mm 62 mm
48 Z-45C 45 mm 50 mm 30 mm 61 mm
50 Z-50 45 mm 54 mm 37 mm 69 mm
  Z-BDX 47 mm 53 mm 32 mm 68 mm
  Z-INT 47 mm 53 mm 34 mm 69 mm
  Z-PAM 45 mm 68 mm 56 mm 87 mm
55 Z-55 49 mm 56 mm 38 mm 69 mm
  Z-RAY 50 mm 59 mm 37 mm 74 mm
  Z-60x70xH37xV87 60 mm 70 mm 37 mm 87 mm

Download
datasheet

Available colors:
White or Brown.
Other colors, request us more info.

Other Measures and Models, request us more info.
